Why Borehole Size Matters
Ground source heat pump (GSHP) systems rely on borehole heat exchangers (BHE).
Drilling is expensive
Land is limited
Overdesign leads to high CAPEX
Borehole installation can represent >30% of total system cost
Reducing borehole size = the single biggest cost lever
.
How PVT Changes the System
PVT (Photovoltaic-Thermal) systems provide:
Additional heat input to ground loop
Regeneration of borehole temperature
Reduced thermal depletion
PVT acts as a “ground source booster”.

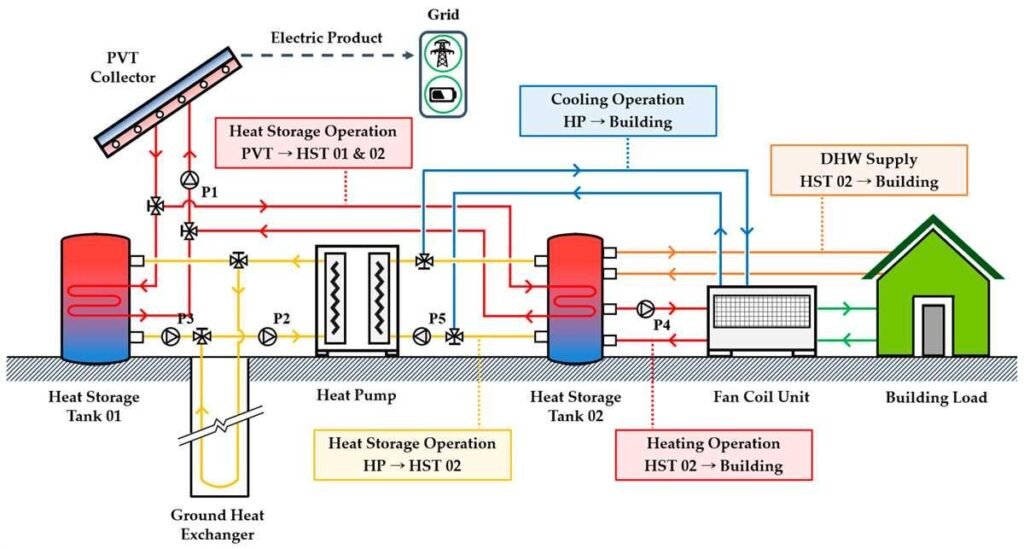

Mechanism Visualization
- PVT provides additional thermal input
- Ground temperature is regenerated
- Heat extraction demand is reduced
Borehole Reduction vs Performance
Borehole Length vs System COP
- Borehole length ↓
.
Ground Temperature Over Time
PVT mitigates long-term thermal depletion
Research Sources & Validation
Peer-Reviewed Journals
Studies on PVT-assisted ground source heat pump systems
Simulation-based optimization research
Multi-source renewable heating system analysis
Energy Journal
Solar Energy Journal
Energy and Buildings
Research Institutions
Oak Ridge National Laboratory（钻井成本研究）
European building energy research groups
Engineering Studies
Field demonstrations in Europe
Multi-family and residential simulations
Hybrid PVT-GSHP system validation
Data Interpretation
Important Notice:
- Results depend on:
- Climate conditions
- System design
- Control strategy
- Building load
- Reported values are based on:
- Simulation models
- Experimental setups
- Engineering case studies
Actual performance may vary. System-specific design is required to achieve optimal results.
Key Research Findings
1. ~30% Reduction (Real Engineering Feedback)
- Borehole length reduction: ≈30% (field feedback)
- Also improves COP (~+0.2 increase)
Verified Data & Research Evidence
| Study Type | Reduction Range | Context | Source Type |
|---|---|---|---|
| Field feedback (engineering projects) | ~30% | Real installations with PVT-assisted GSHP | Industry case reports |
| Simulation studies | 18–45% | Residential & multi-family buildings | Peer-reviewed journals |
| System optimization studies | up to 40%+ | Optimized borefield design | Research institutions |
Reported values vary depending on climate, system configuration, and control strategy.
Typical achievable reduction is 15–30% under practical conditions.
2. 18–45% Reduction (Simulation Studies)
- ~18% borehole length reduction
- Up to 45% reduction in some climate
30% reduction is a realistic, conservative engineering claim
3. Land Use Reduction up to 89%
Land requirement reduced by up to 89%
4. Borehole Optimization Potential
Comparison – With vs Without PVT
| Parameter | Conventional GSHP | PVT + GSHP |
|---|---|---|
| Borehole Length | 100% baseline | ↓ 18–45% |
| Land Use | High | ↓ up to 89% |
| Installation Cost | High | Reduced |
| COP Stability | Medium | Higher |
| Long-term Performance | Declining | Improved |
Why Borehole Size Can Be Reduced
Thermal Regeneration
PVT injects heat into the ground loop:
- Prevents ground cooling
- Maintains higher source temperature.
Higher Evaporator Temperature
- Heat pump operates at higher efficiency
- Less extraction required from ground.
Load Balancing
- Solar input offsets heating demand
- Reduces peak load on boreholes
.
Verified Data & Research Evidence
| Study Type | Reduction Range | Context | Source Type |
|---|---|---|---|
| Field feedback (engineering projects) | ~30% | Real installations with PVT-assisted GSHP | Industry case reports |
| Simulation studies | 18–45% | Residential & multi-family buildings | Peer-reviewed journals |
| System optimization studies | up to 40%+ | Optimized borefield design | Research institutions |
.
Reported values vary depending on climate, system configuration, and control strategy.
Typical achievable reduction is 15–30% under practical conditions.
Impact on System Performance
| Parameter | Conventional GSHP | PVT-Assisted GSHP | Improvement |
|---|---|---|---|
| Borehole length | 100% baseline | 55–82% | ↓ up to 45% |
| Seasonal COP | 3.5–4.5 | 4.0–5.2 | ↑ 5–15% |
| Ground temperature decline | High (long-term) | Reduced | Improved stability |
| Peak load stress | High | Lower | More balanced |
Land Use & Installation Impact
| Metric | Conventional GSHP | With PVT Integration |
|---|---|---|
| Land requirement | High | ↓ up to 89% |
| Borehole density | High | Reduced |
| Urban feasibility | Limited | Improved |
| Retrofit feasibility | Moderate | High |
Cost Structure Impact (Key Commercial Driver)
| Cost Component | Share in GSHP System |
|---|---|
| Borehole drilling | 30–50% |
| Heat pump unit | 20–30% |
| Installation & piping | 20–30% |
Borehole reduction directly targets the largest cost component of GSHP systems.
Real Engineering Implications
Lower CAPEX
Less drilling
Fewer boreholes
Smaller Land Requirement
Critical for urban Europe
Easier Permitting
Reduced drilling depth / footprint
Better Long-Term Stability
GSHP ：
Ground temperature decline over years
PVT：
Maintains thermal balance
When Reduction is Realistic
Important:
Borehole reduction depends on:
Climate
Building load
System design
Control strategy
Typical reduction ranges from 15% to 30%, and can be higher under optimized conditions.
Best Applications
Limitations
- Requires proper system design
- Needs integration with control strategy
- Not suitable as standalone replacement
PVT enhances — but does not fully replace — ground source capacity.
